M12 GAL.JAW/JAW RIGGING SCREW 1T

Stock Code:
TBRS12
$16.83
Make an Enquiry
Description

Description

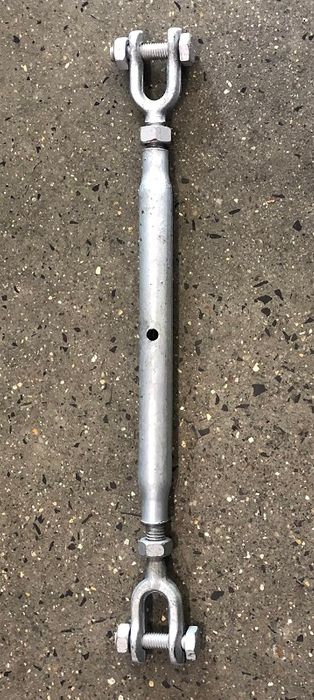

Rigging Screw Galvanised Jaw/Jaw (Standard)

A reliable and cost-effective tensioning solution for general applications. These galvanised steel jaw/jaw rigging screws feature a clevis (jaw) end on both sides, allowing for easy tensioning of ropes, wires, or rods. Perfect for domestic and light commercial use including fencing, shade sails, DIY structural work, and marine rigging where certified lifting is not required.

Specifications

Sizes Available: M12 (1T), 16MM, 20MM, 24MM, M32 (7.25T)

Material: Galvanised Steel (16MM, 20MM, 24MM- Grade S)

Ends: Jaw/Jaw (clevis pins included)

Working Load Limit: M12-1T, 16MM-2T, 20MM-3.2T, 24MM-5T, M32-7.25T

Note: These are commercial-grade only not suitable for rated lifting or certified structural use.

Size Reference

"M" sizes (e.g. M12, M32) refer to the diameter in millimetres of the threaded shaft. Load ratings such as "1T" or "7.25T" are indicative only and not based on certified testing.

Maintenance

Rinse with fresh water after exposure to salt or chemicals

Apply anti-seize or lubricant to threads if left outdoors

Store in a dry place when not in use

Replace if jaw pins or threads show visible wear or damage
