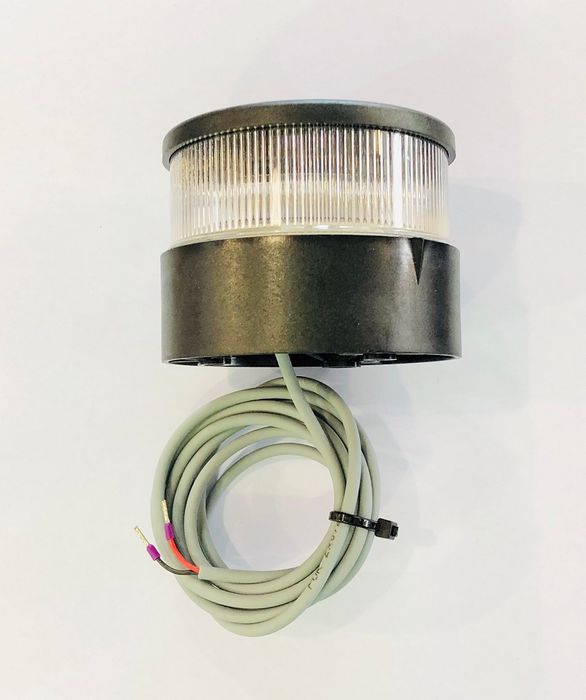

ALL ROUND WHITE LED (SERIES 34) 12/24V
Stock Code:
LBA34ARW
$302.71
Description
Description
Series 34
Maintenance free LED navigation lights.
Application
Application depending on required visibilities. See table in technical information.
Housing
Polycarbonate, seawater resistant, UV protected, non-corrosive, nonmagnetic, impact and shock resistant.
Optics
Innovative lens technology for wide visibility.
Protection degree
IP45

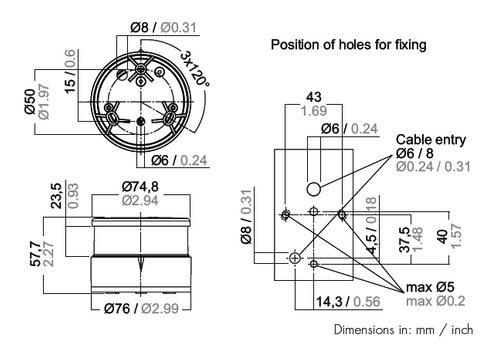

Mounting
Side-mount, pre-wired with 140 mm cable 2 x 0.30 mm2 / AWG 22, 2-hole mounting. Masthead, Masthead / Anchor, Tricolor and Tricolor / Anchor are with quickfits system, deck-mount
Electric
Multivolt, invers polarity protection included, EMC tested, with degradation control, LED(s) included2 x 1.5 mm2, self-protective insulation, class II.
| Description | Vessel size | Wattage | Visibility | Mounting | Voltage | Housing Colour | |
 | All-round white | < 20 m / < 65 ft. | 1,0 W | 2 nm | Deck-mount | 10 - 30 V | |
 | All-round white | < 20 m / < 65 ft. | Approx. 1,3 W | 2 nm | Deck-mount | 10 - 30 V | |
 | All-round white | < 20 m / < 65 ft. | 1,0 W | 2 nm | Deck-mount | 10 - 30 V |
